描述

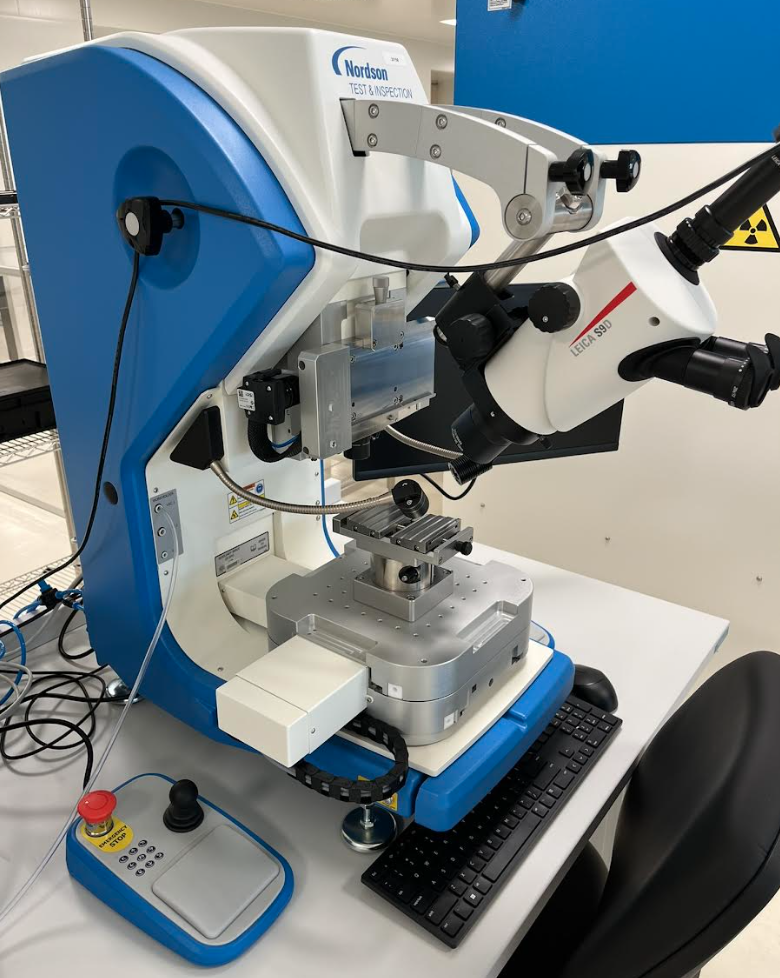

Multifunction bond tester for pull test up to 100kg, shear test up to 200kg and vertical pressure up to 50kg Nordson 4000PLUS System: • Nordson ParagonTM Bondtesting software to control the device via Ethernet port. Prerequisite is a PC or notebook with Windows 10 operating system • ergonomic microscope adjustment with interface 'Pole-Mount' for focusing • Monitor holder VESA 100 can be mounted either on the left or on the right • Software-controlled gooseneck LED lighting left and right • Joystick/Keypad Combination on the left with integrated emergency off button • Joystick/Keypad Combination right • PDF manuals • Drawer for storing small parts • Integrated rack for storing up to 3 standard load cartridges • ESD grounding socket Certificates: • ISO 9001:2015 • CE declaration of conformity

配置

Options/Add-ons: -Leica S9D KIT - Configured Leica S9D microscope with digital camera for use on Nordson DAGE bond testers -4000PLUS-CART-P1KG - Load cartridge for pull test up to 1kg -4000PLUS-CART-S5KG -Load cartridge for shear test up to max. 5kg. Horizontal shear movement in the y-direction. -4000PLUS-CART-P10KG - Load cartridge for pull test up to 10kg -4000PLUS-CART-S50KG - Load cartridge for shear test up to max. 50kg. Horizontal shear movement in the y-direction. -4000PLUS-CART-S200KG - Load cartridge for shear test up to max. 200kg. Horizontal shear movement in the y-direction -4000PLUS-CART-PP50KGHR Load cartridge for push and pull test up to max. 50kg per direction. With particularly rigid measuring system (HR High Rigidity) for precise displacement measurement. -HY-STY-200 - Workpiece holder for maximum 200kg shear test -HY-VPL-10-100 - Vacuum base plate with quick release device for precise rotation and a maximum of 10kg shear test. Serves as a substructure for the screw poles STY-100 and STY-200, as well as for custom-made -4000PLUS-IMAGE-CAPTURE - Digital 3M Pixel Image Capture System standing vertically with lighting -4000PLUS-BEND-FIX-3: 3-point bending test and cyclic fatigue according to ASTM D790, IPC TM-650 and IEC 61189-2:TM20 Technical Data: • 75mm electric travel in z-axis, maximum traction speed 5mm/s • Weight approx. 85kg • Pitch with joysticks and PC keyboard: (wxdxh) 630mm x 750mm x 830mm • Power supply with automatic input voltage regulation 90 to 264V AC, 47 to 63Hz
